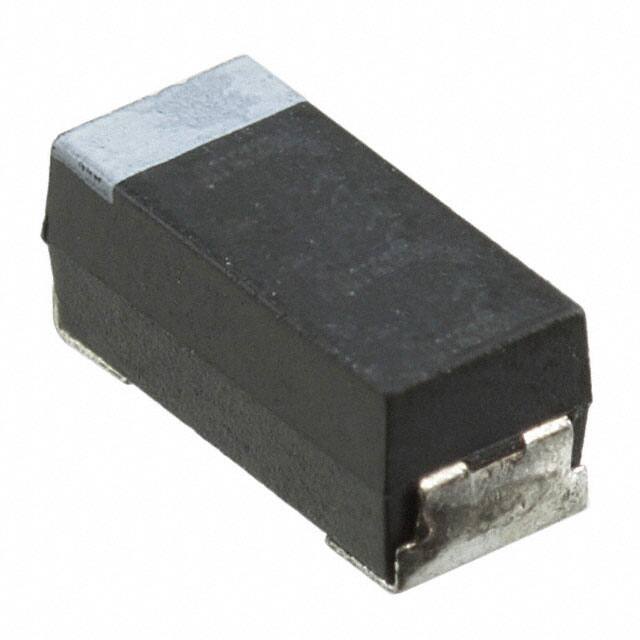

AVX TAZF106K015CRSZ0800

AVX

Manufacturer No:

TAZF106K015CRSZ0800

Manufacturer:

AVX

Cybertant No:

Package:

Datasheet:

Datasheet

ECAD Model:

Description:

CAP TANT 10UF 10% 15V 2214

Quantity:

Unit Price: 5.171959

Ext Price: $5.17

Delivery:

Payment:

In Stock : 28

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

1

5.171959

$5.17

Want a lower wholesale price? Please send RFQ, we will respond immediately.

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

AVX TAZF106K015CRSZ0800 information

Specifications

Documents & Media

Product Comparison

Related Products

AVX TAZF106K015CRSZ0800 technical specifications, attributes, parameters and parts with similar specifications to AVX TAZF106K015CRSZ0800.

Parameter	Value
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	2214 (5634 Metric)
Surface Mount	YES
Terminal Shape	J BEND
Dielectric Material	TANTALUM
Weight	153.002376mg
Operating Temperature	-55u00b0C~125u00b0C
Packaging	Tape & Reel (TR)
Published	2012
Series	Military, MIL-PRF-55365/11, TAZ
Size / Dimension	0.220Lx0.135W 5.59mmx3.43mm
Tolerance	u00b110%
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Molded
Terminal Finish	Tin/Lead (Sn/Pb) - hot dipped
Additional Feature	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
HTS Code	8532.21.00.50
Capacitance	10u03bcF
Voltage - Rated DC	15V
Packing Method	TR, 7 Inch
Depth	3.43mm
Reach Compliance Code	not_compliant
Case Code (Metric)	5634
Case Code (Imperial)	2214
ESR (Equivalent Series Resistance)	667mOhm @ 100kHz
Polarity	Polar
Leakage Current	2u03bcA
Ripple Current	200mA
Tan Delta	0.06
Dissipation Factor	8 %
Manufacturer Size Code	F
Features	High Reliability
Height	1.78mm
Height Seated (Max)	0.085 2.16mm
Length	5.59mm
RoHS Status	Non-RoHS Compliant
Ratings	COTS
