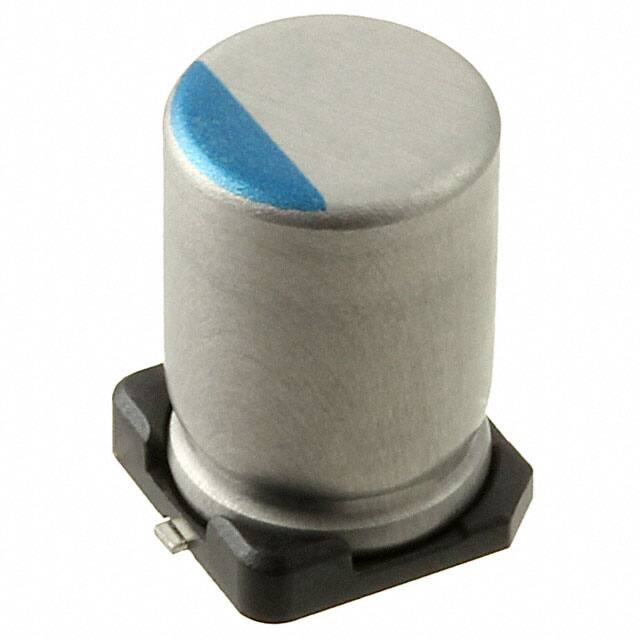

Nichicon PCR1H121MCL2GS
Nichicon PCR1H121MCL2GS thumbnail
Nichicon PCR1H121MCL2GS thumbnail
FREE SAMPLE

Nichicon PCR1H121MCL2GS

Nichicon

Manufacturer No:

PCR1H121MCL2GS

Manufacturer:

Nichicon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CAP ALUM POLY 120UF 20% 50V SMD

Quantity:

Unit Price: 8.144987

Ext Price: $8.14

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1200

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    8.144987

    $8.14

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Nichicon PCR1H121MCL2GS information

Specifications
Documents & Media
Product Comparison
Related Products
Nichicon PCR1H121MCL2GS technical specifications, attributes, parameters and parts with similar specifications to Nichicon PCR1H121MCL2GS.
ParameterValue
Factory Lead Time 17 Weeks
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Weight 900.012311mg
Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Lifetime @ Temp. 4000 Hrs @ 125u00b0C
Operating Temperature -55u00b0C~125u00b0C
Packaging Tape & Reel (TR)
Published 2009
Series PCR
Size / Dimension 0.315Dia 8.00mm
Tolerance u00b120%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
HTS Code 8532.24.0020
Capacitance 120u03bcF
Voltage - Rated DC 50V
Depth 8.3mm
Lead Pitch 3.2mm
ESR (Equivalent Series Resistance) 25mOhm
Polarity POLARIZED
Size Code 3333
Voltage 50V
Leakage Current 3u03bcA
Ripple Current 2.9A
Life (Hours) 4000 hours
Ripple Current @ High Frequency 2.9A @ 100kHz
Dissipation Factor 0.08 %
Diameter 8mm
Height 12mm
Height Seated (Max) 0.472 12.00mm
Length 9mm
RoHS Status ROHS3 Compliant
