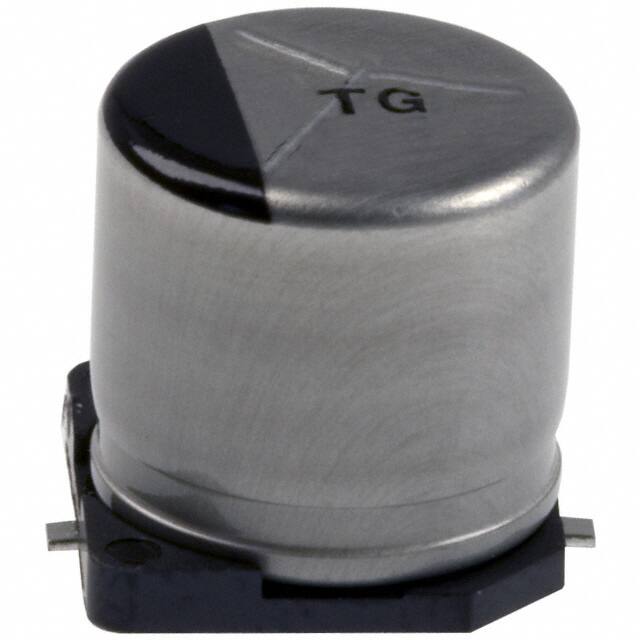

Panasonic Electronic Components EEE-TG1V221UP
Panasonic Electronic Components EEE-TG1V221UP thumbnail
Panasonic Electronic Components EEE-TG1V221UP thumbnail
FREE SAMPLE

Panasonic Electronic Components EEE-TG1V221UP

Panasonic Electronic Components

Manufacturer No:

EEE-TG1V221UP

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CAP ALUM 220UF 20% 35V SMD

Quantity:

Unit Price: 1.070348

Ext Price: $1.07

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 4000

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    1.070348

    $1.07

Want a lower wholesale price? Please send RFQ, we will respond immediately.

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electronic Components EEE-TG1V221UP information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electronic Components EEE-TG1V221UP technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components EEE-TG1V221UP.
ParameterValue
Factory Lead Time 12 Weeks
Contact Plating Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material Aluminium
Surface Mount Land Size 0.406Lx0.406W 10.30mmx10.30mm
Lifetime @ Temp. 2000 Hrs @ 125u00b0C
Operating Temperature -40u00b0C~125u00b0C
Packaging Tape & Reel (TR)
Published 2011
Series TG
Size / Dimension 0.394Dia 10.00mm
Tolerance u00b120%
JESD-609 Code e3/e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Applications Automotive
Additional Feature ESR IS MEASURED AT 100 KHZ
Capacitance 220u03bcF
Voltage - Rated DC 35V
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 300mOhm @ 100kHz
Size Code 4141
Voltage 35V
Leakage Current 77u03bcA
Ripple Current 270mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 175.5mA @ 120Hz
Ripple Current @ High Frequency 270mA @ 100kHz
Dissipation Factor 0.16 %
Ripple Current (AC) 270mA
Diameter 10mm
Height 10.2mm
Height Seated (Max) 0.402 10.20mm
Length 12mm
Width 10.3mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings AEC-Q200
