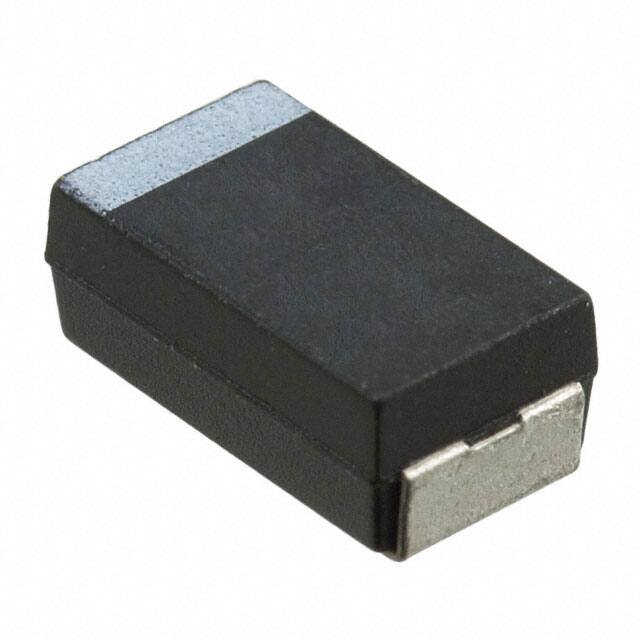

AVX CWR09NC475KB
AVX CWR09NC475KB thumbnail
AVX CWR09NC475KB thumbnail
FREE SAMPLE

AVX CWR09NC475KB

AVX

Manufacturer No:

CWR09NC475KB

Manufacturer:

AVX

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CAP TANT 4.7UF 10% 50V 2915

Quantity:

Unit Price: 16.004705

Ext Price: $16.00

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 543

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    16.004705

    $16.00

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
AVX CWR09NC475KB information

Specifications
Documents & Media
Product Comparison
Related Products
AVX CWR09NC475KB technical specifications, attributes, parameters and parts with similar specifications to AVX CWR09NC475KB.
ParameterValue
Factory Lead Time 16 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2915 (7338 Metric)
Terminal Shape J BEND
Dielectric Material TANTALUM
Voltage Rated 50V
Operating Temperature -55u00b0C~125u00b0C
Packaging Bulk
Published 2012
Series Military, MIL-PRF-55365/4, CWR09
Size / Dimension 0.285Lx0.150W 7.24mmx3.81mm
Tolerance u00b110%
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Type Molded
Capacitance 4.7u03bcF
Depth 3.81mm
Military Standard MIL-PRF-55365
ESR (Equivalent Series Resistance) 1.5Ohm
Failure Rate B (0.1%)
Polarity Polar
Rated (DC) Voltage (URdc) 50V
Leakage Current 0.003mA
Ripple Current 130mA
Tan Delta 0.06
Dissipation Factor 6 %
Manufacturer Size Code H
Features High Reliability
Height 2.79mm
Height Seated (Max) 0.125 3.17mm
Length 7.24mm
Radiation Hardening No
RoHS Status Non-RoHS Compliant
