Aluminum Polymer Capacitors

View Mode:

7,883 Results

Product	Inventory	Pricing(USD)	Datasheet	Additional Feature	Applications	Capacitance	Depth	Diameter	Dissipation Factor	ECCN Code	ESR (Equivalent Series Resistance)	Factory Lead Time	Height	Height Seated (Max)	HTS Code	JESD-609 Code	Lead Free	Lead Pitch	Leakage Current	Length	Life (Hours)	Lifetime @ Temp.	Max Operating Temperature	Min Operating Temperature	Moisture Sensitivity Level (MSL)	Mount	Mounting Type	Number of Terminations	Operating Temperature	Package / Case	Packaging	Part Status	Pbfree Code	Polarity	Published	Ripple Current	Ripple Current @ High Frequency	RoHS Status	Series	Size / Dimension	Size Code	Surface Mount Land Size	Terminal Finish	Terminal Shape	Termination	Tolerance	Type	Voltage	Voltage - Rated DC	Voltage Rated	Weight

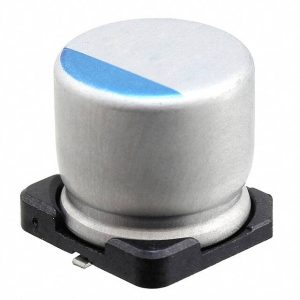

PCR1C681MCL1GS Nichicon	3542	$3.26	Datasheet	ESR IS MEASURED AT 100KHZ	General Purpose	680u03bcF	10.3mm	10mm	0.08 %	EAR99	19mOhm	17 Weeks	10mm	0.394 10.00mm	8532.24.0020	e6	Lead Free	4.6mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.2A	3.2A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	Tin/Bismuth (Sn/Bi)	FLAT	SMD/SMT	u00b120%	Polymer	16V	16V	-	949.99252mg
PCR1D101MCL1GS Nichicon	-	-	Datasheet	-	General Purpose	100u03bcF	6.6mm	6.3mm	-	-	41mOhm	-	5.9mm	0.240 6.10mm	-	-	-	2.1mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	1.3A	1.3A @ 100kHz	RoHS Compliant	PCR	0.248Dia 6.30mm	-	0.260Lx0.260W 6.60mmx6.60mm	-	-	SMD/SMT	u00b120%	Polymer	20V	20V	-	-
PCR1D151MCL1GS Nichicon	1000	$1.91	Datasheet	-	General Purpose	150u03bcF	8.3mm	8mm	0.08 %	EAR99	39mOhm	17 Weeks	7mm	0.276 7.00mm	8532.24.0020	-	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	1.2A	1.2A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	500.000539mg
PCR1D151MCL4GS Nichicon	-	-	Datasheet	-	General Purpose	150u03bcF	6.6mm	6.3mm	-	-	25mOhm	-	7.9mm	0.315 8.00mm	-	-	-	2.1mm	3u03bcA	7.3mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	yes	POLARIZED	2009	1.7A	1.7A @ 100kHz	RoHS Compliant	PCR	0.248Dia 6.30mm	2926	0.260Lx0.260W 6.60mmx6.60mm	-	-	SMD/SMT	u00b120%	Polymer	20V	20V	-	-
PCR1D331MCL1GS Nichicon	2000	$2.74	Datasheet	-	General Purpose	330u03bcF	10.3mm	10mm	0.08 %	EAR99	23mOhm	17 Weeks	8mm	0.315 8.00mm	8532.24.0020	-	-	4.6mm	3u03bcA	11mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	2.6A	2.1A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	850.003752mg
PCR1D331MCL6GS Nichicon	2000	$4.36	Datasheet	-	General Purpose	330u03bcF	8.3mm	8mm	0.08 %	EAR99	19mOhm	17 Weeks	10mm	0.394 10.00mm	8532.24.0020	e3	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.3A	3.3A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	Matte Tin (Sn)	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	749.986634mg
PCR1D471MCL1GS Nichicon	2000	$2.82	Datasheet	-	General Purpose	470u03bcF	8.3mm	8mm	0.08 %	EAR99	18mOhm	17 Weeks	12mm	0.472 12.00mm	8532.24.0020	-	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.5A	3.5A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	900.012311mg
PCR1D560MCL1GS Nichicon	-	-	Datasheet	-	General Purpose	56u03bcF	5.3mm	5mm	-	-	70mOhm	-	5.9mm	0.240 6.10mm	-	-	-	1.6mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	700mA	700mA @ 100kHz	RoHS Compliant	PCR	0.197Dia 5.00mm	-	0.209Lx0.209W 5.30mmx5.30mm	-	-	SMD/SMT	u00b120%	Polymer	20V	20V	-	-
PCR1D561MCL1GS Nichicon	1000	-	Datasheet	-	General Purpose	560u03bcF	10.3mm	10mm	0.08 %	EAR99	20mOhm	17 Weeks	10mm	0.394 10.00mm	8532.24.0020	-	-	4.6mm	3u03bcA	11mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.1A	3.1A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	949.99252mg
PCR1D681MCL1GS Nichicon	1200	-	Datasheet	-	General Purpose	680u03bcF	10.3mm	10mm	0.08 %	EAR99	14mOhm	17 Weeks	12.7mm	0.500 12.70mm	8532.24.0020	-	-	4.6mm	3u03bcA	11mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	4.2A	4.2A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	20V	20V	-	1.299996g
PCR1E101MCL1GS Nichicon	2000	$1.86	Datasheet	-	General Purpose	100u03bcF	8.3mm	8mm	0.08 %	EAR99	41mOhm	17 Weeks	7mm	0.276 7.00mm	8532.24.0020	-	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	1.2A	1.2A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	500.000539mg
PCR1E101MCL4GS Nichicon	-	-	Datasheet	-	General Purpose	100u03bcF	6.6mm	6.3mm	0.08 %	-	27mOhm	21 Weeks	8mm	0.315 8.00mm	-	-	-	2.1mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	1.6A	1.6A @ 100kHz	RoHS Compliant	PCR	0.248Dia 6.30mm	-	0.260Lx0.260W 6.60mmx6.60mm	-	-	SMD/SMT	u00b120%	Polymer	25V	25V	-	-
PCR1E221MCL1GS Nichicon	3542	$2.68	Datasheet	-	General Purpose	220u03bcF	10.3mm	10mm	0.08 %	EAR99	24mOhm	17 Weeks	8mm	0.315 8.00mm	8532.24.0020	-	-	4.6mm	3u03bcA	11mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	2.5A	2.1A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	850.003752mg
PCR1E221MCL6GS Nichicon	2000	$2.64	Datasheet	-	General Purpose	220u03bcF	8.3mm	8mm	0.08 %	EAR99	20mOhm	17 Weeks	10mm	0.394 10.00mm	8532.24.0020	e3	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.2A	3.2A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	Matte Tin (Sn)	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	749.986634mg
PCR1E271MCL1GS Nichicon	2000	$1.22	Datasheet	-	General Purpose	270u03bcF	8.3mm	8mm	0.08 %	EAR99	19mOhm	17 Weeks	12mm	0.472 12.00mm	8532.24.0020	-	-	3.2mm	3u03bcA	9mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.3A	3.3A @ 100kHz	ROHS3 Compliant	PCR	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	900.012311mg
PCR1E330MCL1GS Nichicon	-	-	Datasheet	-	General Purpose	33u03bcF	5.3mm	5mm	0.08 %	-	75mOhm	-	6mm	0.240 6.10mm	-	-	-	1.6mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	700mA	700mA @ 100kHz	RoHS Compliant	PCR	0.197Dia 5.00mm	-	0.209Lx0.209W 5.30mmx5.30mm	-	-	SMD/SMT	u00b120%	Polymer	25V	25V	-	-
PCR1E331MCL1GS Nichicon	1111	$3.05	Datasheet	-	General Purpose	330u03bcF	10.3mm	10mm	0.08 %	EAR99	20mOhm	17 Weeks	10mm	0.394 10.00mm	8532.24.0020	-	-	4.6mm	3u03bcA	11mm	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	3.1A	3.1A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	949.99252mg
PCR1E471MCL1GS Nichicon	280	$4.00	Datasheet	ESR IS MEASURED AT 100KHZ	General Purpose	470u03bcF	10.3mm	10mm	0.08 %	EAR99	15mOhm	17 Weeks	12.7mm	0.500 12.70mm	8532.24.0020	e6	-	4.6mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	2	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	4.1A	4.1A @ 100kHz	ROHS3 Compliant	PCR	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	Tin/Bismuth (Sn/Bi)	FLAT	SMD/SMT	u00b120%	Polymer	25V	25V	-	1.299996g
PCR1E560MCL1GS Nichicon	-	-	Datasheet	-	General Purpose	56u03bcF	6.6mm	6.3mm	0.08 %	-	43mOhm	-	6mm	0.240 6.10mm	-	-	-	2.1mm	3u03bcA	6mm	4000 hours	4000 Hrs @ 125u00b0C	125u00b0C	-55u00b0C	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	1.3A	1.3A @ 100kHz	RoHS Compliant	PCR	0.248Dia 6.30mm	-	0.260Lx0.260W 6.60mmx6.60mm	-	-	SMD/SMT	u00b120%	Polymer	25V	25V	25V	-
PCR1H120MCL1GS Nichicon	-	-	Datasheet	-	General Purpose	12u03bcF	5.3mm	5mm	-	-	88mOhm	-	5.9mm	0.240 6.10mm	-	-	-	1.6mm	3u03bcA	-	4000 hours	4000 Hrs @ 125u00b0C	-	-	1 (Unlimited)	PCB, Surface Mount	Surface Mount	-	-55u00b0C~125u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Obsolete	-	-	2009	600mA	600mA @ 100kHz	RoHS Compliant	PCR	0.197Dia 5.00mm	-	0.209Lx0.209W 5.30mmx5.30mm	-	-	SMD/SMT	u00b120%	Polymer	50V	50V	-	-
