Aluminum Polymer Capacitors

View Mode:

7,883 Results

Product	Inventory	Pricing(USD)	Datasheet	Applications	Capacitance	Diameter	Dielectric Material	Dissipation Factor	ECCN Code	ESR (Equivalent Series Resistance)	Factory Lead Time	Height	Height Seated (Max)	HTS Code	JESD-609 Code	Lead Free	Leakage Current	Length	Life (Hours)	Lifetime @ Temp.	Moisture Sensitivity Level (MSL)	Mount	Mounting Type	Number of Pins	Number of Terminations	Operating Temperature	Package / Case	Packaging	Part Status	Pbfree Code	Polarity	Published	Radiation Hardening	REACH SVHC	Ripple Current	Ripple Current (AC)	Ripple Current @ High Frequency	RoHS Status	Series	Size / Dimension	Size Code	Surface Mount Land Size	Tan Delta	Terminal Finish	Terminal Shape	Termination	Tolerance	Type	Voltage	Voltage - Rated DC	Width
PCF0J681MCL1GS Nichicon	1336	$1.70	Datasheet	General Purpose	680u03bcF	10mm	-	0.12 %	EAR99	14mOhm	16 Weeks	10mm	0.394 10.00mm	8532.22.00	e4	Lead Free	856u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	5A	-	5A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	6.3V	10.3mm
PCF0J681MCL9GS Nichicon	521	$1.27	Datasheet	General Purpose	680u03bcF	-	-	-	EAR99	10mOhm	16 Weeks	-	0.504 12.80mm	8532.22.00	e4	-	857u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2015	-	-	5.5A	-	5.5A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4341	0.406Lx0.406W 10.30mmx10.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	6.3V	10.3mm
PCF0J820MCL1GS Nichicon	30492	$1.15	Datasheet	General Purpose	82u03bcF	6.3mm	-	0.12 %	EAR99	23mOhm	16 Weeks	6mm	0.236 6.00mm	8532.22.00	e4	Lead Free	103u03bcA	7.3mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2007	No	-	2.6A	-	2.6A @ 100kHz	ROHS3 Compliant	PCF	0.248Dia 6.30mm	2626	0.260Lx0.260W 6.60mmx6.60mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	6.3V	6.3V	-
PCF0J820MCL4GB Nichicon	12	$0.44	Datasheet	General Purpose	82u03bcF	6.3mm	-	-	EAR99	23mOhm	17 Weeks	5.5mm	0.217 5.50mm	8532.22.00	e4	-	0.103mA	7.3mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	-	-	2.6A	-	2.6A @ 100kHz	ROHS3 Compliant	PCF	0.248Dia 6.30mm	2626	0.260Lx0.260W 6.60mmx6.60mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	6.3V	6.6mm
PCF0J821MCL1GS Nichicon	196500	$1.66	Datasheet	General Purpose	820u03bcF	10mm	-	-	EAR99	10mOhm	16 Weeks	12.7mm	0.500 12.70mm	8532.22.00	e4	Lead Free	1.033mA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	5.8A	-	5.8A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	6.3V	10.3mm
PCF1A100MCL1GB Nichicon	12000	$0.50	Datasheet	General Purpose	10u03bcF	4mm	-	-	EAR99	220mOhm	19 Weeks	5.5mm	0.217 5.50mm	8532.22.00	e4	Lead Free	0.1mA	-	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	700mA	-	700mA @ 100kHz	ROHS3 Compliant	PCF	0.157Dia 4.00mm	1717	0.169Lx0.169W 4.30mmx4.30mm	0.12	SILVER OVER COPPER	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	4.3mm
PCF1A121MCL1GS Nichicon	9000	$1.15	Datasheet	General Purpose	120u03bcF	8mm	-	0.12 %	EAR99	23mOhm	16 Weeks	6mm	0.276 7.00mm	-	e4	Lead Free	240u03bcA	9mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	2	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	3A	-	3A @ 100kHz	ROHS3 Compliant	PCF	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	8.3mm
PCF1A150MCL1GB Nichicon	12	$0.33	Datasheet	General Purpose	15u03bcF	4mm	-	-	EAR99	200mOhm	19 Weeks	5.5mm	0.217 5.50mm	8532.22.00	e4	-	0.1mA	-	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	-	-	700mA	-	700mA @ 100kHz	ROHS3 Compliant	PCF	0.157Dia 4.00mm	1717	0.169Lx0.169W 4.30mmx4.30mm	0.12	SILVER OVER COPPER	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	4.3mm
PCF1A151MCL1GS Nichicon	430	$1.40	Datasheet	General Purpose	150u03bcF	10mm	-	0.12 %	EAR99	21mOhm	16 Weeks	8mm	0.315 8.00mm	8532.22.00	e4	Lead Free	300u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	No	-	3.3A	-	3.3A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	10.3mm
PCF1A151MCL6GS Nichicon	12	$0.65	Datasheet	General Purpose	150u03bcF	8mm	-	0.12 %	EAR99	23mOhm	16 Weeks	8mm	0.276 7.00mm	8532.22.00	e4	Lead Free	300u03bcA	9mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2007	No	-	3.2A	-	3.2A @ 100kHz	ROHS3 Compliant	PCF	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	8.3mm
PCF1A271MCL1GS Nichicon	13500	$1.59	Datasheet	General Purpose	270u03bcF	10mm	-	0.12 %	EAR99	20mOhm	16 Weeks	6mm	0.315 8.00mm	-	e4	Lead Free	540u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	2	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2009	No	-	3.6A	-	3.6A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	10.3mm
PCF1A271MCL4GS Nichicon	47	$1.11	Datasheet	General Purpose	270u03bcF	8mm	-	-	EAR99	13mOhm	16 Weeks	12mm	0.472 12.00mm	8532.22.00	e4	-	0.54mA	9mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	4.5A	-	4.5A @ 100kHz	ROHS3 Compliant	PCF	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	8.3mm
PCF1A330MCL1GS Nichicon	97	$1.08	Datasheet	General Purpose	33u03bcF	5mm	-	-	EAR99	35mOhm	17 Weeks	6mm	0.236 6.00mm	8532.22.00	e4	Lead Free	0.165mA	-	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	-	-	1.5A	-	1.5A @ 100kHz	ROHS3 Compliant	PCF	0.197Dia 5.00mm	2121	0.209Lx0.209W 5.30mmx5.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	5.3mm
PCF1A331MCL1GS Nichicon	20000	$0.96	Datasheet	General Purpose	330u03bcF	10mm	-	0.12 %	EAR99	20mOhm	16 Weeks	8mm	0.315 8.00mm	8532.22.00	e4	Lead Free	660u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	No	-	3.7A	-	3.7A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	10.3mm
PCF1A331MCL4GS Nichicon	27	$0.61	Datasheet	General Purpose	330u03bcF	-	-	-	EAR99	14mOhm	16 Weeks	-	0.472 12.00mm	8532.22.00	e4	Lead Free	0.66mA	9mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2006	-	-	4A	-	4A @ 100kHz	ROHS3 Compliant	PCF	0.315Dia 8.00mm	3333	0.327Lx0.327W 8.30mmx8.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	8.3mm
PCF1A470MCL1GS Nichicon	440	-	Datasheet	General Purpose	47u03bcF	6.3mm	-	0.12 %	EAR99	26mOhm	16 Weeks	6mm	0.236 6.00mm	-	e4	Lead Free	94u03bcA	7.3mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	2	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	POLARIZED	2007	No	-	2.6A	-	2.6A @ 100kHz	ROHS3 Compliant	PCF	0.248Dia 6.30mm	-	0.260Lx0.260W 6.60mmx6.60mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	-

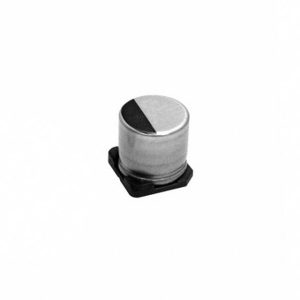

PCF1A470MCL6GS Nichicon	768	$1.32	Datasheet	General Purpose	47u03bcF	5mm	-	-	EAR99	26mOhm	17 Weeks	6mm	0.236 6.00mm	8532.22.00	e4	Lead Free	0.235mA	-	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2009	-	-	2.6A	-	2.6A @ 100kHz	ROHS3 Compliant	PCF	0.197Dia 5.00mm	2121	0.209Lx0.209W 5.30mmx5.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	5.3mm
PCF1A471MCL1GS Nichicon	836	$1.47	Datasheet	General Purpose	470u03bcF	10mm	Aluminium	0.12 %	EAR99	16mOhm	16 Weeks	10mm	0.394 10.00mm	-	e4	Lead Free	940u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	2	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2007	No	No SVHC	4.6A	4.6A	4.6A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	-	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	10V	10V	10.3mm
PCF1A471MCL9GS Nichicon	42	$1.28	Datasheet	General Purpose	470u03bcF	-	-	-	EAR99	12mOhm	16 Weeks	-	0.500 12.70mm	8532.22.00	e4	-	940u03bcA	11mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2015	-	-	5.3A	-	5.3A @ 100kHz	ROHS3 Compliant	PCF	0.394Dia 10.00mm	4141	0.406Lx0.406W 10.30mmx10.30mm	0.12	Silver (Ag)	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	10.3mm
PCF1A4R7MCL1GB Nichicon	1111	$0.58	Datasheet	General Purpose	4.7u03bcF	-	-	-	EAR99	240mOhm	19 Weeks	-	0.217 5.50mm	8532.22.00	e4	-	100u03bcA	5mm	2000 hours	2000 Hrs @ 105u00b0C	1 (Unlimited)	Surface Mount	Surface Mount	-	2	-55u00b0C~105u00b0C	Radial, Can - SMD	Tape & Reel (TR)	Active	yes	Polar	2012	-	-	670mA	-	670mA @ 100kHz	ROHS3 Compliant	PCF	0.157Dia 4.00mm	1717	0.169Lx0.169W 4.30mmx4.30mm	0.12	SILVER OVER COPPER	FLAT	SMD/SMT	u00b120%	Polymer	-	10V	4.3mm
