Aluminum Polymer Capacitors

View Mode:

7,883 Results

Product	Inventory	Pricing(USD)	Datasheet	RoHS	Applications	Capacitance	Diameter	Dissipation Factor	ESR (Equivalent Series Resistance)	Factory Lead Time	Height	Height Seated (Max)	Lead Diameter	Lead Free	Lead Free Status / RoHS Status	Lead Pitch	Lead Spacing	Length	Life (Hours)	Lifetime @ Temp.	Max Operating Temperature	Min Operating Temperature	Moisture Sensitivity Level (MSL)	Mount	Mounting Type	Operating Temperature	Other Names	Package / Case	Packaging	Part Status	Pbfree Code	Polarity	Published	Radiation Hardening	Resistance	Ripple Current	Ripple Current @ High Frequency	RoHS Status	Series	Size / Dimension	Termination	Tolerance	Type	Voltage - Rated DC	Voltage Rated
APSC160ELL331MJC5S United Chemi-Con	422	$3.19	Datasheet		General Purpose	330u03bcF	-	0.1 %	10mOhm	16 Weeks	-	0.492 12.50mm	600 u03bcm	-	-	5mm	0.197 5.00mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	Polar	2008	No	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.394Dia 10.00mm	Radial	u00b120%	Polymer	16V	-
APSC160ELL471MJB5S United Chemi-Con	324	$2.84	Datasheet		General Purpose	470u03bcF	-	0.1 %	10mOhm	16 Weeks	-	0.453 11.50mm	800 u03bcm	Lead Free	-	5mm	0.197 5.00mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2016	No	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.394Dia 10.00mm	Radial	u00b120%	Polymer	16V	-
APSC160ETD271MHB5S Nippon-Chemi-Con	-	-	-	-	General Purpose	270u00b5F	-	-	11 mOhm	-	-	0.512 (13.00mm)	-	-	Lead free / RoHS Compliant	-	0.138 (3.50mm)	-	-	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	-	Through Hole	-55u00b0C ~ 105u00b0C	565-4946-1	Radial, Can	Cut Tape (CT)	-	-	-	-	-	-	-	5.08A @ 100kHz	-	NPCAPu2122-PSC	0.315 Dia (8.00mm)	-	u00b120%	Polymer	-	16V
APSC160ETD271MHB5S United Chemi-Con	2745	$1.08	Datasheet		General Purpose	270u03bcF	-	0.1 %	11mOhm	16 Weeks	-	0.512 13.00mm	-	Lead Free	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Tape & Reel (TR)	Active	yes	-	2014	-	-	5.08A	5.08A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	16V	-
APSC160ETD471MJB5S United Chemi-Con	500	$1.95	Datasheet		General Purpose	470u03bcF	10mm	0.1 %	10mOhm	16 Weeks	11.5mm	0.512 13.00mm	-	-	-	5mm	0.197 5.00mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Tape & Reel (TR)	Active	yes	-	2016	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.394Dia 10.00mm	Radial	u00b120%	Polymer	16V	-

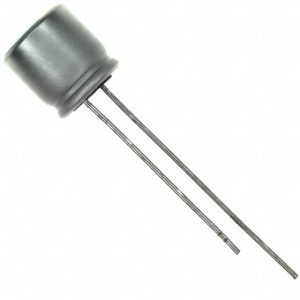

APSC2R5EC3821MH08S United Chemi-Con	-	-	Datasheet		General Purpose	820u03bcF	-	0.1 %	7mOhm	16 Weeks	8mm	0.354 9.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	yes	-	2011	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL102MH08S United Chemi-Con	57	$1.51	Datasheet		-	1mF	-	0.1 %	7mOhm	-	-	8.001mm	-	-	-	3.5mm	-	8mm	2000 hours	-	105u00b0C	-55u00b0C	-	Through Hole	-	-	-	Radial	Bulk	-	-	-	-	-	-	6.1A	-	RoHS Compliant	-	-	-	20%	-	2.5V	-
APSC2R5ELL102MHB5S United Chemi-Con	-	-	Datasheet		General Purpose	1000u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.512 13.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL152MHB5S United Chemi-Con	39	$0.45	Datasheet		General Purpose	1500u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.512 13.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL272MJB5S United Chemi-Con	542	-	Datasheet		General Purpose	2700u03bcF	-	0.1 %	8mOhm	16 Weeks	-	0.453 11.50mm	-	-	-	5mm	0.197 5.00mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	-	-	5.56A	5.56A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.394Dia 10.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL561MH08S United Chemi-Con	686	$1.44	Datasheet		General Purpose	560u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.315 8.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL821MH08J Nippon-Chemi-Con	-	-	-	-	General Purpose	820u00b5F	-	-	5 mOhm	-	-	0.354 (9.00mm)	-	-	Lead free / RoHS Compliant	-	0.138 (3.50mm)	-	-	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	-	Through Hole	-55u00b0C ~ 105u00b0C	-	Radial, Can	Bulk	-	-	-	-	-	-	-	6.1A @ 100kHz	-	NPCAPu2122-PSC	0.315 Dia (8.00mm)	-	u00b120%	Polymer	-	2.5V
APSC2R5ELL821MH08J United Chemi-Con	11	$0.42	-		-	820u03bcF	-	0.1 %	5mOhm	-	-	8.9916mm	-	-	-	3.5mm	-	8mm	2000 hours	-	105u00b0C	-55u00b0C	-	Through Hole	-	-	-	Radial	Bulk	-	yes	-	-	-	-	6.1A	-	RoHS Compliant	-	-	-	20%	-	2.5V	-
APSC2R5ELL821MH08S United Chemi-Con	38	$0.42	Datasheet		General Purpose	820u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.315 8.00mm	600 u03bcm	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	No	7mOhm	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC2R5ELL821MH08S Nippon-Chemi-Con	-	-	-	-	General Purpose	820u00b5F	-	-	7 mOhm	-	-	0.315 (8.00mm)	-	-	Lead free / RoHS Compliant	-	0.138 (3.50mm)	-	-	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	-	Through Hole	-55u00b0C ~ 105u00b0C	565-3219	Radial, Can	Bulk	-	-	-	-	-	-	-	6.1A @ 100kHz	-	NPCAPu2122-PSC	0.315 Dia (8.00mm)	-	u00b120%	Polymer	-	2.5V
APSC2R5ETD821MH08S United Chemi-Con	42	$0.39	Datasheet		General Purpose	820u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.354 9.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Tape & Box (TB)	Active	yes	-	2014	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	2.5V	-
APSC4R0ELL102MJB5S Nippon-Chemi-Con	-	-	-	-	General Purpose	1000u00b5F	-	-	6 mOhm	-	-	0.453 (11.50mm)	-	-	Lead free / RoHS Compliant	-	0.197 (5.00mm)	-	-	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	-	Through Hole	-55u00b0C ~ 105u00b0C	565-3225	Radial, Can	Bulk	-	-	-	-	-	-	-	6.64A @ 100kHz	-	NPCAPu2122-PSC	0.394 Dia (10.00mm)	-	u00b120%	Polymer	-	4V
APSC4R0ELL102MJB5S United Chemi-Con	513	$2.45	Datasheet		General Purpose	1000u03bcF	-	0.1 %	6mOhm	16 Weeks	-	0.453 11.50mm	800 u03bcm	-	-	5mm	0.197 5.00mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	Polar	2011	No	-	6.64A	6.64A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.394Dia 10.00mm	Radial	u00b120%	Polymer	4V	-
APSC4R0ELL561MH08S United Chemi-Con	901	$0.70	Datasheet		General Purpose	560u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.315 8.00mm	-	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	-	2014	-	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	4V	-
APSC4R0ELL681MHB5S United Chemi-Con	33	$0.86	Datasheet		General Purpose	680u03bcF	-	0.1 %	7mOhm	16 Weeks	-	0.512 13.00mm	800 u03bcm	-	-	3.5mm	0.138 3.50mm	-	2000 hours	2000 Hrs @ 105u00b0C	-	-	1 (Unlimited)	Through Hole	Through Hole	-55u00b0C~105u00b0C	-	Radial, Can	Bulk	Active	-	Polar	2011	No	-	6.1A	6.1A @ 100kHz	ROHS3 Compliant	NPCAPu2122-PSC	0.315Dia 8.00mm	Radial	u00b120%	Polymer	4V	-
